Coffee packaging with a strong emphasis on the aesthetics of the bag

with side trimming of the film and the insertion of an inner valve

Customer requirements

  • Maximum emphasis on the appearance of the stand-up pouch with heat-sealed edges
  • Removing the silver stripe along the edge with a longitudinal weld
  • Internal valve applicator and option to add a zipper applicator

The solution provided

  • VERSATILE-280 packaging machine with extended film unwinding for mounting a label applicator and zipper

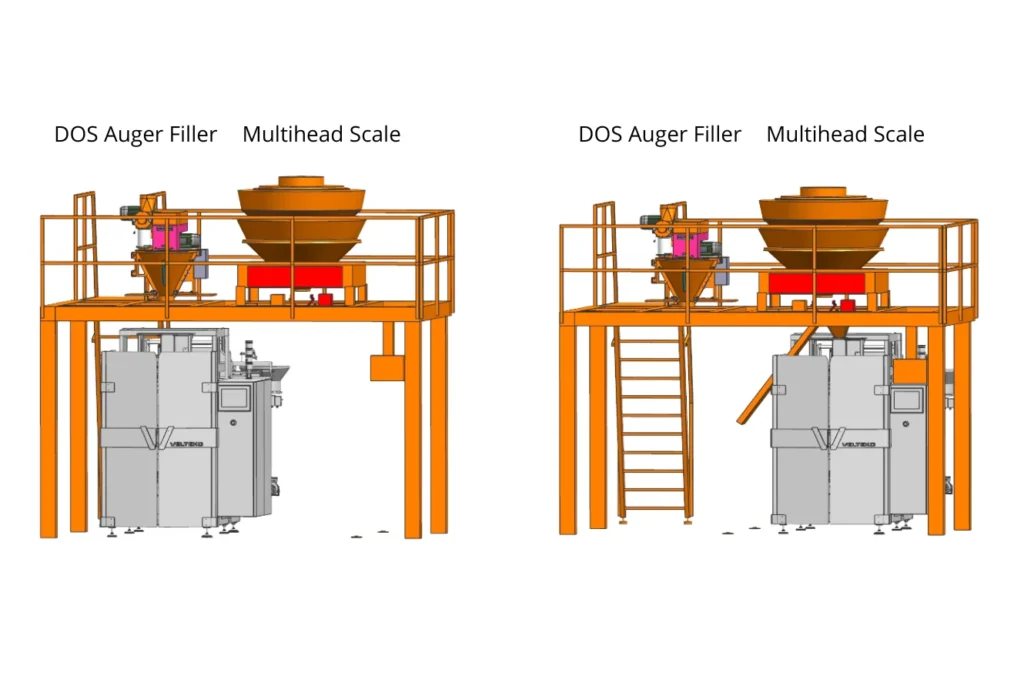

  • Two dispensers (screw-type and volumetric) mounted on a single platform, allowing for the packaging of both whole bean and ground coffee on the same machine
  • Application of Ultrasonic Valve Welding
  • Placement of the longitudinal seam along the edge for maximum marketing impact on the back of the bag
  • Trimming the long edge for a perfect finish without a silver strip, and motorized winding of the trimmed film

Customer Benefits

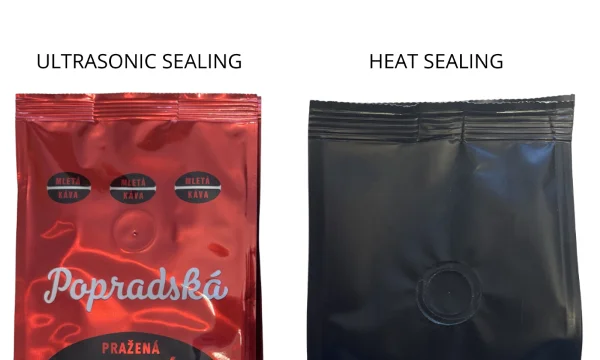

Ultrasonic welding

Customer Benefits 1) Ultrasonic welding The film is not subjected to as much heat, resulting in a more aesthetically pleasing bag and a less visible valve

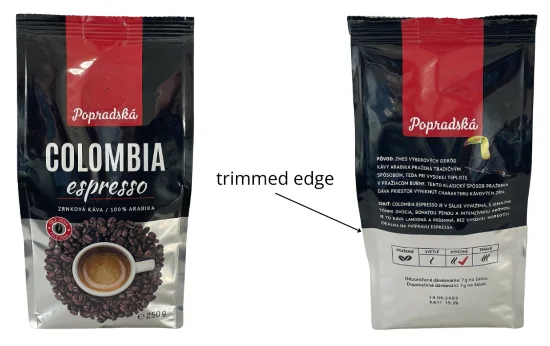

Trimming the long edge

The longitudinal edge of the film is precisely trimmed during the manufacturing process.

Winding the scrap onto the spool

The cut film is wound onto a spool, which reduces energy consumption and eliminates noise compared to suctioning the waste material.
